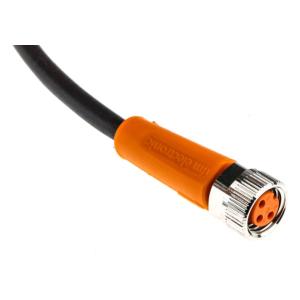

    EVC142 - Connecting cable with socket - ifm - ifm electronic Connector: 1 x M8

    Ask Lasest Price
    Brand Name : IFM
    Model Number : EVC142
    Certification : 3C
    Price : $19/piece
    Payment Terms : T/T
    Supply Ability : 1piece in stock
    Delivery Time : 3 day
    • Product Details
    • Company Profile

    EVC142 - Connecting cable with socket - ifm - ifm electronic Connector: 1 x M8

    EVC142 - Connecting cable with socket - ifm - ifm electronic Connector: 1 x M8
    Application
    Special featureFree from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
    Free from siliconeyes
    Electrical data
    Operating voltage [V]< 50 AC / < 60 DC
    Protection class III
    Max. current load total [A] 3
    Operating conditions
    Ambient temperature[°C]-25...90
    Note on ambient temperaturecULus: ...80
    Ambient temperature
    (moving)
    [°C]-25...90
    Note on ambient temperature
    (moving)
    cULus: ...80
    IP 65; IP 67; IP 68; IP 69K
    Protection
    EVC142 - Connecting cable with socket - ifm - ifm electronic Connector: 1 x M8ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVC142-00 — 05.11.2020 —
    EVC142
    Connecting cable with socket
    ADOGF030MSS0005H03
    Mechanical data
    Weight[g]105.7
    Dimensions [mm]10 x 10 x 31
    Materialshousing: TPU orange; Sealing: FKM
    Material nutbrass, nickel-plated
    Drag chain suitabilityyes
    Drag chain suitabilitybending radius for flexible usemin. 10 x cable diameter
    travel speedmax. 3.3 m/s for a horizontal travel length
    of 5 m and max. acceleration of 5 m/s²
    bending cycles> 5 Mio.
    torsional strain± 180 °/m
    Remarks
    Pack quantity1 pcs.
    Electrical connection
    Cable: 5 m, PUR, Halogen-free, black, Ø 3.7 mm; 3 x 0.25 mm² (32 x Ø 0.1 mm )
    Electrical connection - socket
    EVC142 - Connecting cable with socket - ifm - ifm electronic Connector: 1 x M8Connector: 1 x M8, straight; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm
    Connection
    BK
    BN
    BU
    EVC142 - Connecting cable with socket - ifm - ifm electronic Connector: 1 x M8 Core colours :
    black
    brown
    blue
    Quality EVC142 - Connecting cable with socket - ifm - ifm electronic Connector: 1 x M8 for sale
