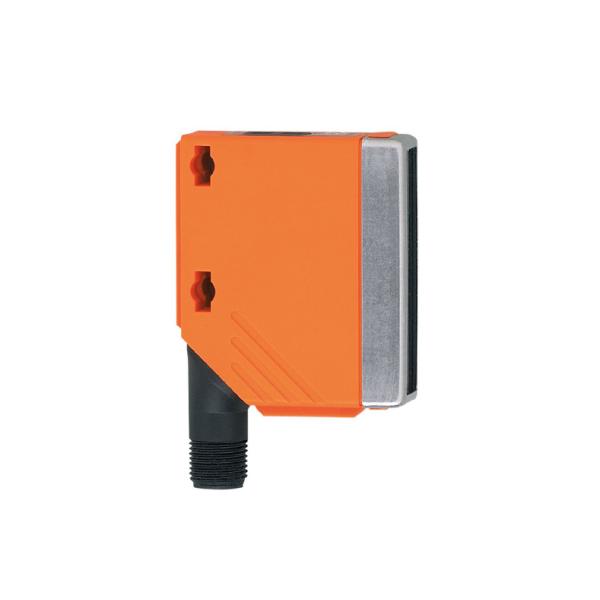

Diffuse reflection sensors with background suppression O5H500 O5H-FPKG

Ask Lasest Price
Brand Name :	IFM
Model Number :	OGH500
Certification :	3C
Price :	$164/piece
Payment Terms :	T/T
Supply Ability :	1piece in stock
Delivery Time :	3 day

Add to Cart

Product Details
Company Profile

Diffuse reflection sensors with background suppression O5H500 O5H-FPKG

Photoelectric sensors
O5H500		1: Programming buttons 2: When a M5 mounting screw is used, the max. tightening torque is 2 Nm. Receiver in upper lens, transmitter in lower lens
O5H-FPKG/US
Diffuse reflection sensor
Rectangular plastic
Plug and socket
Background suppression
Teach function
Electronic lock
Range 50...1800mm
(Range referred to white paper 200 x
200 mm, 90 % remission)
adjustable


Output		light-on / dark-on programmable
Range Object white (90 % remission) Object grey (18 % remission) Object black (6 % remission)	[mm]	50...1800 50...900 50...600
Light spot diameter	[mm]	50 ( Range 1000 mm )
Operating voltage	[V]	10...36 DC
Current rating [mA]		200
Short-circuit protection		pulsed
Reverse polarity protection		yes
Overload protection		yes
Voltage drop	[V]	< 2.5
Current consumption	[mA]	25
Switching frequency	[Hz]	1000
Type of light		Red light 624 nm
Operating temperature [°C]		-25...60
Protection		IP 67, II
EMC		EN 60947-5-2
Housing material		housing: PA; bezel: high-grade stainless steel; operator interface: TPU
Material lens		PMMA
Function display Switching status	LED	yellow
Connection		M12 connector
Remarks		cULus - Class 2 source required
ifm electronic gmbh • Teichstraße 4 • 45127 Essen — We reserve the right to make technical alterations without prior notice. — GB — O5H500 — 13.04.2007

己
O5H500
Wiring

Accuracy graph

a: sensor
b: object
c: background
x: distance sensor / object
y: min. distance object / background

Values in [mm]
1 = object black (6 % remission),background white (90 % remission) 2 = object grey (18 % remission),background white (90 % remission)
3 = object white (90 % remission),background white (90 % remission)
