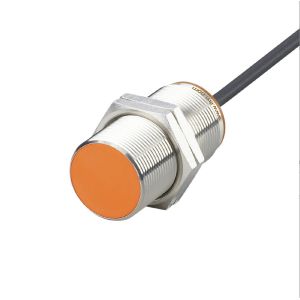

IIS238 Inductive Sensor IfmElectronic For Industrial Mobile Cooling And Lubricating Industrial Applications

Ask Lasest Price
Brand Name :	IFM
Model Number :	IIS238
Certification :	3C
Price :	$82/piece
Payment Terms :	T/T
Supply Ability :	1piece in stock
Delivery Time :	3 day

Add to Cart

Product Details
Company Profile

IIS238 Inductive Sensor IfmElectronic For Industrial Mobile Cooling And Lubricating Industrial Applications

Product characteristics
Inductive sensor Metal thread M30 x 1.5 Cable Increased sensing range Sensing range 15 mm; [f] flush mountable
Electrical data
Electrical design DC PNP Operating voltage [V] 10...30 DC Current consumption [mA] < 10 Protection class III Reverse polarity protection yes
Outputs
Output function normally open Voltage drop [V] < 2.5 Current rating [mA] 100 Short-circuit protection yes Overload protection yes Switching frequency [Hz] 100
Monitoring range
Sensing range [mm] 15 Real sensing range (Sr) [mm] 15 ± 10 % Operating distance [mm] 0... 12. 15 Accuracy / deviations
Correction factors		mild steel = 1 / stainless steel approx . 0.7 / brass approx . 0.5 / aluminium
			approx . 0.4 / copper approx . 0.3
Hysteresis [% of Sr]			3... 15
Switch-point drift [% of Sr]			- 10...10
Environment
Ambient temperature [°C]		-40...85 IP 65 / IP 66 / IP 67 / IP 68 / IP 69K
Protection
Tests / approvals
EMC			EN 61000-4-2 ESD :	4 kV CD / 8 kV AD
			EN 61000-4-3 HF radiated :	10 V/ m
			EN 61000-4-4 Burst:	2 kV
			EN 61000-4-6 HF conducted :	10 V
http://www.ifm.com/products/us/ds/IIS238.htm 1/2
6/23/2017 IIS238 - Inductive sensor - eclass: 27270101 / 27-27-01-01
			EN 55011:	class B
Vibration resistance				20 g ( 10. . .3000 Hz) / 50 cycles per frequency, 1 octave per minute in each of 3 mutually perpendicular axes

Shock resistance				100 g ( 11 ms half sine; 3 shocks in each direction along the three coordinate axes)

Continuous shock resistance				40 g (6 ms; 4000 shocks in each direction along the three coordinate axes)

Fast temperature changes				TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s; 50 cycles

Salt spray test
MTTF [Years]			861
UL approval number			A002
	Mechanical data
Mounting			flush mountable
Housing materials			brass white bronze coated ; active face : PBT orange; LED window: PEI ; lock nuts : brass white bronze coated
Weight [kg]			0.158
	Displays / operating elements
Output status indication LED			yellow
Electrical connection
Connection		PUR cable / 2 m; 3 x 0.34 mm²; Ø 4 mm; Brennverhalten gemäß ECE R118 Rev.2
Wiring
Core colors
BK black
BN brown
BU blue
Accessories
Accessories (included)		2 lock nuts
Remarks
Pack quantity [piece]		1
